DESCRIPTION
Revised 2/24

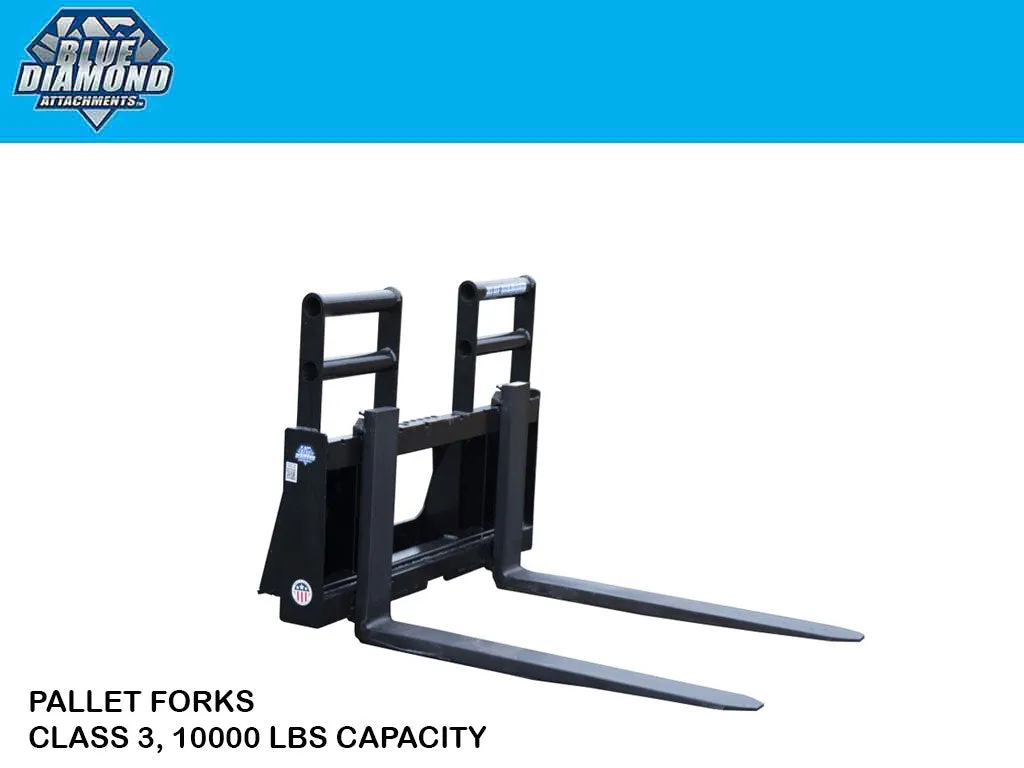

PALLET FORKS – CLASS 3 10,000 LBS. CAPACITY

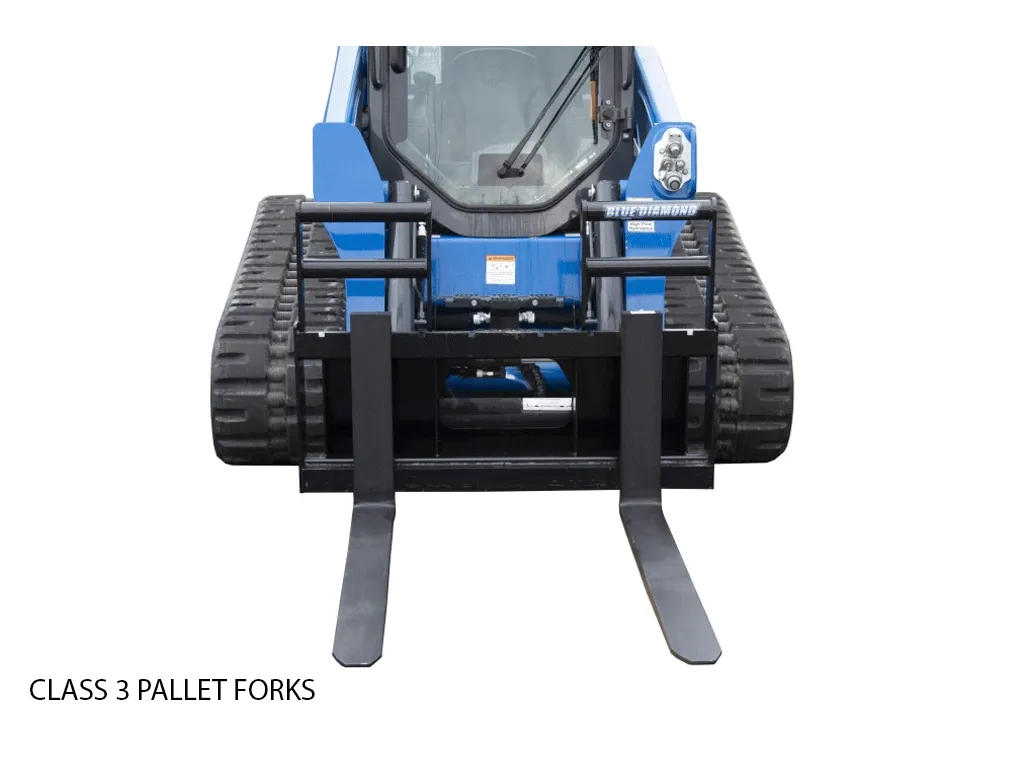

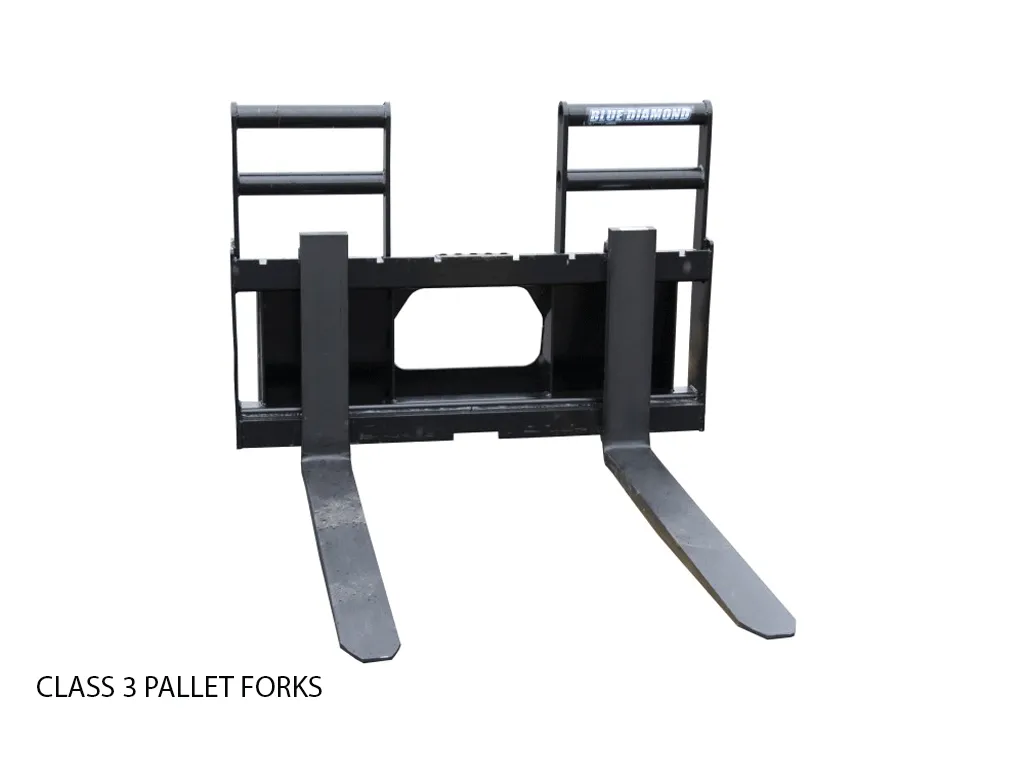

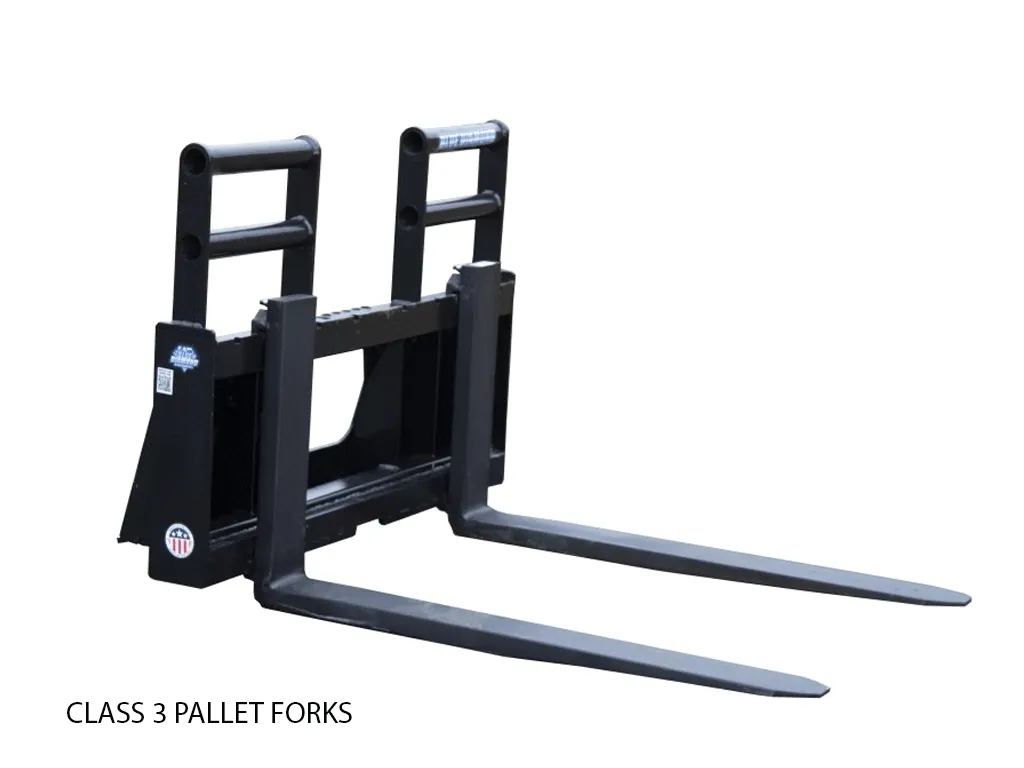

Our Blue Diamond® Heavy Duty Pallet Forks are available to fit large frame track loaders and wheel loaders that have the skid steer quick attach. The cutout in the backrest offers easy cab entry for skid steers and also is designed to clear center linkage on wheel loaders. The Class 3 frame can accommodate a number of fork lengths from 48” to 72”.
- 10,000 lb capacity
- 48”, 60”, and 72” length tines available
- Back rest design fits multiple applications
- 50″ wide frame
- Fork dimensions: 2” x 5
SPECIFICATIONS
| Part Number | Model | Tine Size | Lift Capacity | Weight |
|---|---|---|---|---|
| 314150 | Frame | 48" X 1 3/4" | 10,000 lbs | 595 lbs |
| 314152 | Frame | 60" X 1 3/4" | 10,000 lbs | 732 lbs |
| 314155 | Frame | 60" X 2" | 10,000 lbs | 758 lbs |
| 314160 | Frame | 72" X 2" | 10,000 lbs | 828 lbs |
| 314165 | Frame | 84" X 2" | 10,000 lbs | 848 lbs |
| 314167 | Frame | 96" X 2" | 10,000 lbs | 875 lbs |
